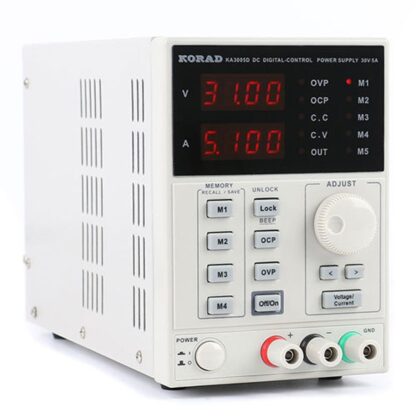

KORAD KA3005DS Adjustable Digital Programmable DC Power Supply – Upgraded Model
Features :
- 30V/5A full digital power control single
- 10mV/1mA high accuracy and resolution
- Low noise and ripple
- CV/CC given voltage and constant current mode
- Highly reliable OCP, OVP, arbitrarily set protection
- Built-in set of parameters stored
- Outputs a switch control
- Power and memory function
- Keypad lock to prevent misuse
- Intelligent temperature control fan, effectively reduce the noise
- Easy alternative to traditional digital power
- Precisely generate the required voltages and currents.
- 0-30V adjustable DC output high-precision.
- 10mV and 1mA resolution.
- Professional power supply design with intuitive operability.
- Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.
- To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can
- The keyguard lock panel buttons to prevent undesirable results in the key test engineering
- Just press the button to recall and save area a key to bring up the user to store the data and save user settings
Specification :
- Operating Conditions :
- Input voltage : 220V
- Frequency range : 50- 60Hz
- Operating temperature : 32-104 ℉ (0-40 ºC)
- Operating humidity : < 80%RH
- Storage temperature : 32-158 ℉ (0-70 ºC)
- Storage humidity : < 70%RH
Stable Voltage :
- Output Voltage Range : 0-30V Continuously adjustable
- Setup Resolution : 10 mV
- Setup Accuracy : <0.05% +20 mV
- Ripple : < 1mVRMS
- Read back Accuracy : 10 mV
- Temp. Coefficient : < 0.1% + 10mV
- Read back Temp. Coefficient : < 100 ppm+10 mV
Stable Current :
- Output Current Range : 0-5A Continuously adjustable
- Setup Resolution : 1 mA
- Setup Accuracy : <0.1% +3 mA
- Ripple : < 3mARMS
- Read back Accuracy : 1 mA
- Temp. Coefficient : < 0.1% + 5mA
- Read back Temp. Coefficient : < 100 ppm+5 mA
